SUS 302 Spring Tempered Stainless Steel Wire With Soap Coated / Bright Surface

SUS 302 Spring Tempered Stainless Steel Wire With Soap Coated / Bright Surface

SUS 302 Spring Tempered Stainless Steel Wire With Soap Coated / Bright Surface
video
SUS 302 Spring Tempered Stainless Steel Wire With Soap Coated / Bright Surface
Product Details:
Place of Origin: China
Brand Name: Toponewire
Certification: ISO9001:2015
Model Number: 201/302/304/316/316L
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Price: Negotiable

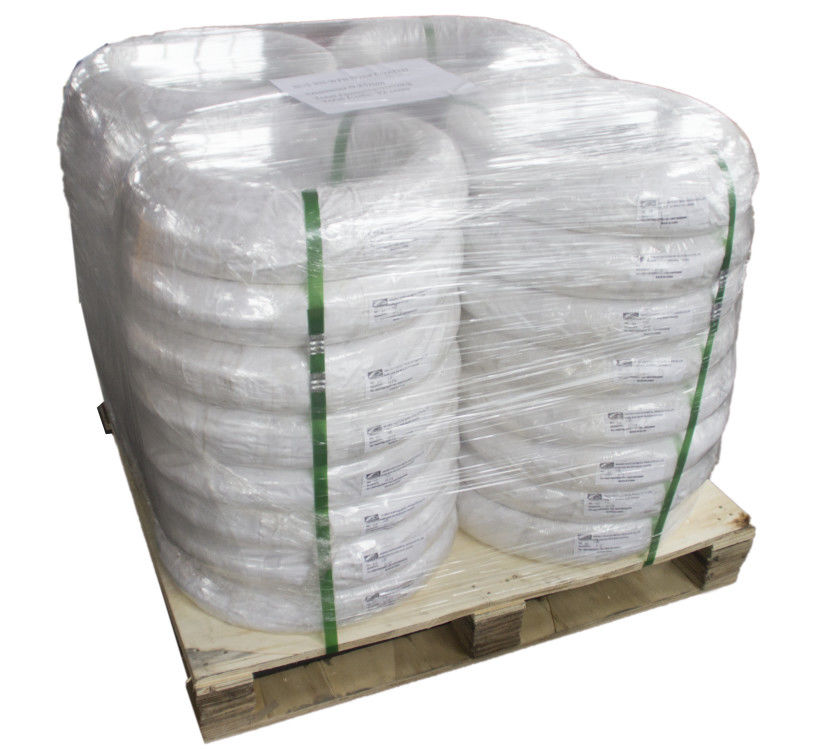

Packaging Details: coil, spool with plate.
Delivery Time: 1-15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500tons per month
Contact Now
Detailed Product Description
Material: SUS 302 Surface: Soap Coated/Bright
Coil Inner Diameter: 250-1000mm Standard: JIS G. EN10270-3. ASTM. DIN. GB Etc
Packing: Coil Or Spool With Plate Supply Ability: >500 Tons Per Month
Highlight:

spring tempered stainless steel wire

,

wire for making springs

stainless steel spring wire SUS 302 Soap coated/Bright 0.25 - 18mm





Stainless steel is extremely versatile and is selected for its use primarily due to its corrosion and heat resistant properties.

This makes it the ideal material for springs operating in low maintenance environments or where replacement is difficult.

Coatings

To ensure maximum performance and efficiency when machining, our spring wire is supplied with a consistent soap coating that enables the spring forming machines to run efficiently at high speeds with excellent spring coiling charac­te­ristics.

For certain applications where no soap coating is required we also offer a bright finish.



As a leading manufacturer of stainless steel, we have been working with many big companies in Europe and Asian.We are in a good position not only to supply you high quality stainless steel wire, but also the excellent sales service. Well-trained engineers and sales will offer you any technical support.



Chemical Properties:

  C Mn Si P S Cr Ni N
302 max: 0.15 max:2.0 max: 0.75 max: 0.045 max: 0.03 min: 17.0 max: 19.0 min: 8.0 max: 10.0 max: 0.10



Mechanical Properties:

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Rockwell B) MAX
302 75 30 40 92



Physical Properties:

Density
lbm/in3
Thermal Conductivity
(BTU/h ft. °F)
Electrical
Resistivity
(in x 10-6)
Modulus of
Elasticity
(psi x 106
Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6
Specific Heat
(BTU/lb/
°F)
Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 72.0 at 70°F 28 9.6 at 32 – 212°F 0.1200 at 32°F to 212°F 2500 to 2590
  12.4 at 932 °F     10.2 at 32 – 1000°F
        10.4 at 32 – 1500°F





Feel Free to contact me for any further information.
