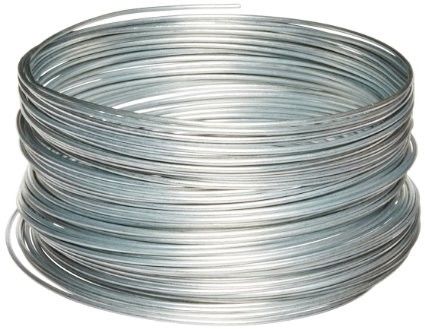

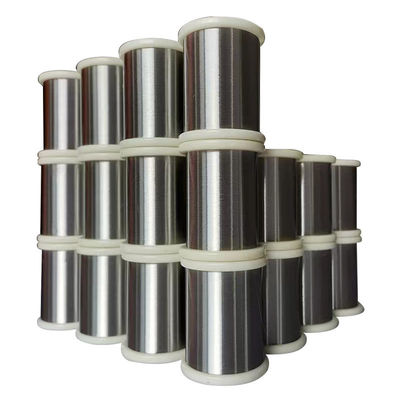

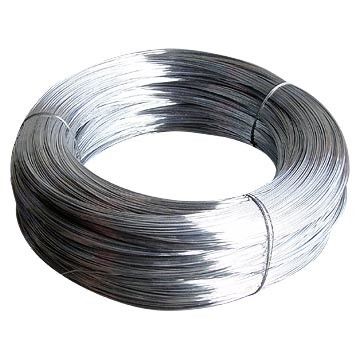

Good bending,high luster rigidity soft annealed stainless steel wire
Product Description
1. Name: Huayuan Stainless Steel Annealed Wire for making mesh
2. Size: Dia from 0.8mm to 15mm can be available
3. Certification: SGS Test Report & Follow ISO 9001:2015 Standard
| Product Name |
Matt Finish Stainless Steel Hydrogen Annealed Wire |
| Material |
Stainless 316/304/430/201 |
| Color |
Bright Or Matt |
| Standard |
ASTM A580, JIS G4309, EN 10088-3, GB/T4240 and Other Equivalents. |
| Grade |
Grade: 201, 202, 301, 302, 304, 304L, 304H, 304N, 316L, 321, 410, 420, 430 |
| Temper |
Annealed and Soft |
| Type |
Stainless steel annealed wire |
| Used |
industry machinery weaving |
APPLICATIONS
Stainless steel wire is mainly used in below fields:
1) Electric power, petroleum, boiler, high or low temperature resistant, corrosion resistant.
2) Tableware, cabinet, cutting tool, boiler, auto part.
3) Medical instruments, building materials, food industry.
4) Sea, chemical industry and machine manufacture.Or they can be made upon negotiation.
Physical Properties
| Diameter Tolerance & Oval Tolerance |
Mechanical Properties |
| (mm)Dia. |
(mm)Dia.Tolerance |
Oval.Tolerance |
| 0.030-0.050 |
±0.003 |
≤0.003 |
| 0.050-0.080 |
±0.004 |
≤0.004 |
| 0.080-0.10 |
±0.005 |
≤0.005 |
| 0.10-0.16 |
±0.007 |
≤0.007 |
| 0.16-0.28 |
±0.010 |
≤0.010 |
| 0.28-0.50 |
±0.013 |
≤0.013 |
| 0.50-0.90 |
±0.015 |
≤0.015 |
| 0.90-1.60 |
±0.02 |
≤0.02 |
| 1.60-2.80 |
±0.03 |
≤0.03 |
| 2.80-5.00 |
±0.04 |
≤0.04 |
| 5.00-9.00 |
±0.05 |
≤0.05 |
| 9.00-12.00 |
±0.06 |
≤0.06 |
| 12.00-14.00 |
±0.07 |
≤0.07 |
|
| Type |
(mm)Dia |
(N/mm2)Tensilestrength |
(%)Elongation |
| SUS304.SUS304L |
0.02-0.05 |
880-1130 |
≥10 |
| SUS316.SUS316L |
0.02-0.05 |
650-900 |
≥8 |
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321 |
0.05-0.16 |
650-900 |
≥20 |
| 0.16-0.50 |
610-860 |
| 0.50-1.60 |
570-820 |
≥30 |
| 1.60-5.00 |
520-770 |
| 5.00-14.00 |
500-750 |
| SUS304J3 |
0.05-0.16 |
620-870 |
≥20 |
| 0.16-0.50 |
580-830 |
| 0.50-1.60 |
540-790 |
≥30 |
| 1.60-5.00 |
500-750 |
| 5.00-14.00 |
490-740 |
|
Chemical Composition
| AISI Grade |
Chemical Composition(%) |
| |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
| 304 |
=<0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304H |
>0.08 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
9.00~13.50 |
18.00~20.00 |
- |
| 316 |
=<0.045 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
| 316L |
=<0.030 |
=<1.00 |
=<2.00 |
=<0.045 |
=<0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
| 430 |
=<0.12 |
=<0.75 |
=<1.00 |
=<0.040 |
=<0.030 |
=<0.60 |
16.00~18.00 |
- |
| 430A |
=<0.06 |
=<0.50 |
=<0.50 |
=<0.030 |
=<0.50 |
=<0.25 |
14.00~17.00 |
- |
