Name: High Luster Stainless Steel Forming Wire Wire 304 316 316L Food Grade
Brand: Ningbo Huayuan Metal Products Co.,Ltd
SKU: 201/302/304/316/316L
Price: 2.10 USD
Availability: InStock

Home Products EPQ Wire

High Luster Stainless Steel Forming Wire Wire 304 316 316L Food Grade

Product Details:

Place of Origin:	China
Brand Name:	Toponewire
Certification:	ISO9001:2015
Model Number:	201/302/304/316/316L

Payment & Shipping Terms:

Minimum Order Quantity:	500KG

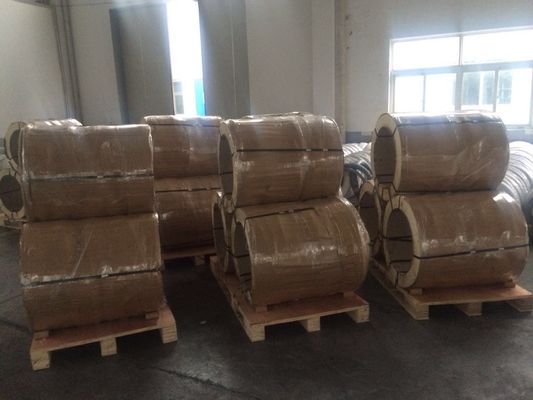

Packaging Details:	coil or spool with plate.
Delivery Time:	1-15 days
Payment Terms:	D/P, Western Union, L/C, T/T
Supply Ability:	500kg per month

Contact Now

Detailed Product Description

Material:	304/316/316L	Diameter:	0.15-12mm
Packing:	By Customer Request	Standard:	JIS G. EN. ASTM. DIN. GB Etc
Surface:	Bright Or Soap Cotaed	Supply Ability:	>500 Tons Per Month
Highlight:	stainless steel bendable wire , bending ss wire

Good Bending High Luster Stainless Steel Wire 304 316 316L

Product Name	Good Bending High Luster Stainless Steel Wire 304 316 316L
Surface	Bright or Matt
Standard	AISI DIN GB JIS
Diameter	0.8-15mm

APPLICATIONS
Stainless steel wire is mainly used in below fields:
1) Electric power, petroleum, boiler, high or low temperature resistant, corrosion resistant.
2) Tableware, cabinet, cutting tool, boiler, auto part.
3) Medical instruments, building materials, food industry.
4) Sea, chemical industry and machine manufacture.Or they can be made upon negotiation.

Mechanical properties

DIAMETER(MM)	TENSILE STRENGTH(MPA)			ELONGATION(%)
DIAMETER(MM)	SOFT-ANNEALED	SEMI-HARD	HARD	FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30	640~980	_	_	≥20
0.30~0.60	590~930	_	_	≥20
0.60~1.00	540~880	830~1180	1180~1520	≥25
1.00~3.00	490~830	780~1130	1130~1470	≥25
3.00~6.00	490~830	730~1080	1080~1420	≥30
6.00~14.00	490~790	730~1030	_	≥30

Physical Properties

Diameter Tolerance & Oval Tolerance

Mechanical Properties

(mm)Dia.	(mm)Dia.Tolerance	Oval.Tolerance
0.030-0.050	±0.003	≤0.003
0.050-0.080	±0.004	≤0.004
0.080-0.10	±0.005	≤0.005
0.10-0.16	±0.007	≤0.007
0.16-0.28	±0.010	≤0.010
0.28-0.50	±0.013	≤0.013
0.50-0.90	±0.015	≤0.015
0.90-1.60	±0.02	≤0.02
1.60-2.80	±0.03	≤0.03
2.80-5.00	±0.04	≤0.04
5.00-9.00	±0.05	≤0.05
9.00-12.00	±0.06	≤0.06
12.00-14.00	±0.07	≤0.07

Type	(mm)Dia	(N/mm2)Tensilestrength	(%)Elongation
SUS304.SUS304L	0.02-0.05	880-1130	≥10
SUS316.SUS316L	0.02-0.05	650-900	≥8
SUS304.SUS304L SUS309S SUS310S SUS316.SUS316L SUS321	0.05-0.16	650-900	≥20
	0.16-0.50	610-860	≥20
	0.50-1.60	570-820	≥30
	1.60-5.00	520-770
	5.00-14.00	500-750
SUS304J3	0.05-0.16	620-870	≥20
	0.16-0.50	580-830	≥20
	0.50-1.60	540-790	≥30
	1.60-5.00	500-750
	5.00-14.00	490-740

Chemical Composition

AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=<0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	9.00~13.50	18.00~20.00	-
316	=<0.045	=<1.00	=<2.00	=<0.045	=<0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=<0.12	=<0.75	=<1.00	=<0.040	=<0.030	=<0.60	16.00~18.00	-
430A	=<0.06	=<0.50	=<0.50	=<0.030	=<0.50	=<0.25	14.00~17.00	-

How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:

1	Your wire application	Required
2	Wire Grade	Required
7	Wire Shape and Size	Required
3	Wire Surface Finish	Required
4	Wire Tensile Strength Level	Required
5	Quantity/Weight	Required
6	Wire Manufacturing Standards	Required
8	Wire Tolerence	Prefered
9	Delivery Time	Prefered
10	Wire Package	Optional
