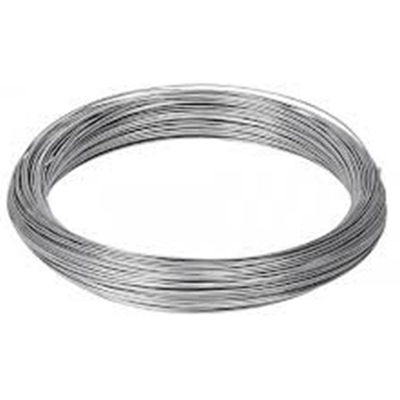

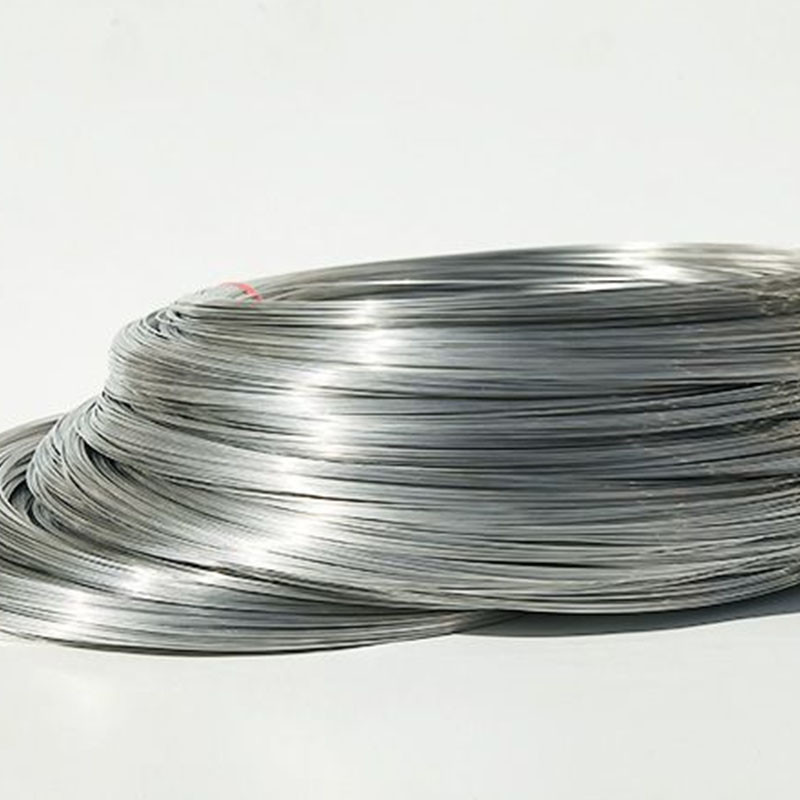

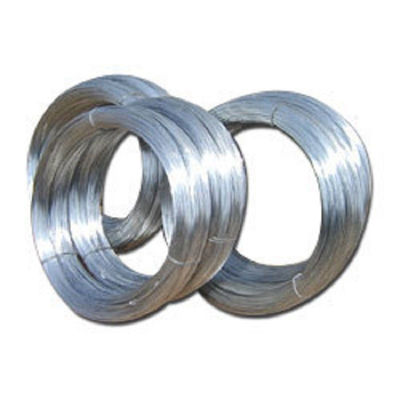

Bendable Stainless Steel Forming Wire 0.8-15mm DIN Standard For Welding

Bendable Stainless Steel Forming Wire 0.8-15mm DIN Standard For Welding

Bendable Stainless Steel Forming Wire 0.8-15mm DIN Standard For Welding
video
Bendable Stainless Steel Forming Wire 0.8-15mm DIN Standard For Welding
Product Details:
Place of Origin: China
Brand Name: Toponewire
Certification: ISO9001:2015
Model Number: 201/302/304/316/316L
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Packaging Details: coil or spool with plate.
Delivery Time: 1-15 days
Payment Terms: D/P, Western Union, L/C, T/T
Supply Ability: 500kg per month
Contact Now
Detailed Product Description
Material: SS201, 202, 304(L), 308(L),309(L),310(S),316(L),347 Etc. Diameter: 0.15-12mm
Surface: Bright Or Soap Cotaed Packing: By Customer Request
Standard: JIS G. EN. ASTM. DIN. GB Etc Supply Ability: >500 Tons Per Month
Highlight:

ss forming wire

,

stainless steel bendable wire

                        Stainless steel forming wire for wire forming parts / welding application


Products:

1) Grade: SS201, 202, 304(L), 308(L),309(L),310(S),316(L),347 etc.
2) Standard: ASTM, DIN, GB, JIS, SUS
3) Diameter: 0.8mm-18.0mm
4) Certification: ISO9001: 2015
5) Coil weight: 20KG, 50KG, 100KG, etc.
6) Application: Mesh weaving, Soft pipe, Isolation, Shipbuilding, Automobile, Chemical industry

Toponewire has focus on stainless steel wire for more than 26 years, we holding more than 1000tons stainless steel wire in stock, samples can be arranged by you request.

For any further information, feel free to comments below.Our experienced group will offer our best service.

Bendable Stainless Steel Forming Wire 0.8-15mm DIN Standard For Welding 0


Mechanical properties




DIAMETER(MM)

 TENSILE STRENGTH(MPA) ELONGATION(%)


SOFT-ANNEALED


SEMI-HARD


HARD

 FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30 640~980 _ _ ≥20
0.30~0.60 590~930 _ _ ≥20
0.60~1.00 540~880 830~1180 1180~1520 ≥25
1.00~3.00 490~830 780~1130 1130~1470 ≥25
3.00~6.00 490~830 730~1080 1080~1420 ≥30
6.00~14.00 490~790 730~1030 _ ≥30



Physical Properties


Diameter Tolerance & Oval Tolerance Mechanical Properties
(mm)Dia. (mm)Dia.Tolerance Oval.Tolerance
0.030-0.050 ±0.003 ≤0.003
0.050-0.080 ±0.004 ≤0.004
0.080-0.10 ±0.005 ≤0.005
0.10-0.16 ±0.007 ≤0.007
0.16-0.28 ±0.010 ≤0.010
0.28-0.50 ±0.013 ≤0.013
0.50-0.90 ±0.015 ≤0.015
0.90-1.60 ±0.02 ≤0.02
1.60-2.80 ±0.03 ≤0.03
2.80-5.00 ±0.04 ≤0.04
5.00-9.00 ±0.05 ≤0.05
9.00-12.00 ±0.06 ≤0.06
12.00-14.00 ±0.07 ≤0.07

Type (mm)Dia (N/mm2)Tensilestrength (%)Elongation
SUS304.SUS304L 0.02-0.05 880-1130 ≥10
SUS316.SUS316L 0.02-0.05 650-900 ≥8
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321		 0.05-0.16 650-900 ≥20
0.16-0.50 610-860
0.50-1.60 570-820 ≥30
1.60-5.00 520-770
5.00-14.00 500-750
SUS304J3 0.05-0.16 620-870 ≥20
0.16-0.50 580-830
0.50-1.60 540-790 ≥30
1.60-5.00 500-750
5.00-14.00 490-740




Chemical Composition


AISI Grade Chemical Composition(%)
  C Si Mn P S Ni Cr Mo
304 =<0.08 =<1.00 =<2.00 =<0.045 =<0.030 8.00~10.50 18.00~20.00 -
304H >0.08 =<1.00 =<2.00 =<0.045 =<0.030 8.00~10.50 18.00~20.00 -
304L =<0.030 =<1.00 =<2.00 =<0.045 =<0.030 9.00~13.50 18.00~20.00 -
316 =<0.045 =<1.00 =<2.00 =<0.045 =<0.030 10.00~14.00 10.00~18.00 2.00~3.00
316L =<0.030 =<1.00 =<2.00 =<0.045 =<0.030 12.00~15.00 16.00~18.00 2.00~3.00
430 =<0.12 =<0.75 =<1.00 =<0.040 =<0.030 =<0.60 16.00~18.00 -
430A =<0.06 =<0.50 =<0.50 =<0.030 =<0.50 =<0.25 14.00~17.00 -




How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:



1 Your wire application Required
2 Wire Grade Required
7 Wire Shape and Size Required
3 Wire Surface Finish Required
4 Wire Tensile Strength Level Required
5 Quantity/Weight Required
6 Wire Manufacturing Standards Required
8 Wire Tolerence Prefered
9 Delivery Time Prefered
10 Wire Package Optional


Bendable Stainless Steel Forming Wire 0.8-15mm DIN Standard For Welding 1
