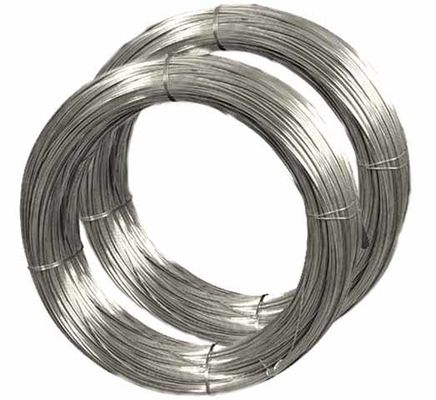

Medical Instruments EPQ High Temperature Resistance Wire SS Forming Wire

Medical Instruments EPQ High Temperature Resistance Wire SS Forming Wire

Medical Instruments EPQ High Temperature Resistance Wire SS Forming Wire
video
Medical Instruments EPQ High Temperature Resistance Wire SS Forming Wire
Product Details:
Place of Origin: China
Brand Name: Toponewire
Certification: ISO9001:2015
Model Number: 201/302/304/316/316L
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Packaging Details: coil or spool with plate.
Delivery Time: 1-15 days
Payment Terms: D/P, Western Union, L/C, T/T
Supply Ability: 500kg per month
Contact Now
Detailed Product Description
Material: Stainless Steel Diameter: 0.15-12mm
Surface: Bright Or Soap Cotaed Packing: By Customer Request
Standard: JIS G. EN. ASTM. DIN. GB Etc Supply Ability: >500 Tons Per Month
Highlight:

high tensile stainless steel wire

,

epq stainless steel wire

,

904 stainless steel forming wire

SUS 302 304 316 310 Material EPQ Stainless Steel Wire



Product Name SUS 302 304 316 310 Material EPQ Stainless Steel Wire
SurfaceBright
StandardAISI DIN GB JIS
Treatmentcold-drawn, soft annealed
Diameter0.8-15mm



1) We are a professional stainless steel wire factory for over 20 years;
2) Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.
3) We promise, if the chemical elements isn't up to the national standard or as said in the contract, we'll refund 100% payment.



Mechanical properties




DIAMETER(MM)

TENSILE STRENGTH(MPA)ELONGATION(%)


SOFT-ANNEALED


SEMI-HARD


HARD

FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30640~980__≥20
0.30~0.60590~930__≥20
0.60~1.00540~880830~11801180~1520≥25
1.00~3.00490~830780~11301130~1470≥25
3.00~6.00490~830730~10801080~1420≥30
6.00~14.00490~790730~1030_≥30



Physical Properties


Diameter Tolerance & Oval ToleranceMechanical Properties
(mm)Dia.(mm)Dia.ToleranceOval.Tolerance
0.030-0.050±0.003≤0.003
0.050-0.080±0.004≤0.004
0.080-0.10±0.005≤0.005
0.10-0.16±0.007≤0.007
0.16-0.28±0.010≤0.010
0.28-0.50±0.013≤0.013
0.50-0.90±0.015≤0.015
0.90-1.60±0.02≤0.02
1.60-2.80±0.03≤0.03
2.80-5.00±0.04≤0.04
5.00-9.00±0.05≤0.05
9.00-12.00±0.06≤0.06
12.00-14.00±0.07≤0.07

Type(mm)Dia(N/mm2)Tensilestrength(%)Elongation
SUS304.SUS304L0.02-0.05880-1130≥10
SUS316.SUS316L0.02-0.05650-900≥8
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321		0.05-0.16650-900≥20
0.16-0.50610-860
0.50-1.60570-820≥30
1.60-5.00520-770
5.00-14.00500-750
SUS304J30.05-0.16620-870≥20
0.16-0.50580-830
0.50-1.60540-790≥30
1.60-5.00500-750
5.00-14.00490-740




Chemical Composition


AISI GradeChemical Composition(%)
 CSiMnPSNiCrMo
304=<0.08=<1.00=<2.00=<0.045=<0.0308.00~10.5018.00~20.00-
304H>0.08=<1.00=<2.00=<0.045=<0.0308.00~10.5018.00~20.00-
304L=<0.030=<1.00=<2.00=<0.045=<0.0309.00~13.5018.00~20.00-
316=<0.045=<1.00=<2.00=<0.045=<0.03010.00~14.0010.00~18.002.00~3.00
316L=<0.030=<1.00=<2.00=<0.045=<0.03012.00~15.0016.00~18.002.00~3.00
430=<0.12=<0.75=<1.00=<0.040=<0.030=<0.6016.00~18.00-
430A=<0.06=<0.50=<0.50=<0.030=<0.50=<0.2514.00~17.00-



 Medical Instruments EPQ High Temperature Resistance Wire SS Forming Wire 0
How to Enquiry Topone Stainless Steel EPQ Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:

1Your wire applicationRequired
2Wire GradeRequired
7Wire Shape and SizeRequired
3Wire Surface FinishRequired
4Wire Tensile Strength LevelRequired
5Quantity/WeightRequired
6Wire Manufacturing StandardsRequired
8Wire TolerencePrefered
9Delivery TimePrefered
10Wire PackageOptional


Medical Instruments EPQ High Temperature Resistance Wire SS Forming Wire 1
