300 Series EPQ Stainless Steel Bendable Wire For Chemical Industry

300 Series EPQ Stainless Steel Bendable Wire For Chemical Industry

300 Series EPQ Stainless Steel Bendable Wire For Chemical Industry
video
300 Series EPQ Stainless Steel Bendable Wire For Chemical Industry
Product Details:
Place of Origin: China
Brand Name: Toponewire
Certification: ISO9001:2015
Model Number: 0.8-15mm
Payment & Shipping Terms:
Minimum Order Quantity: 500KG
Packaging Details: coil or spool with plate.
Delivery Time: 1-15 days
Payment Terms: D/P, Western Union, L/C, T/T
Supply Ability: 500kg per month
Contact Now
Detailed Product Description
Material: 200/300/400 Diameter: 0.8-15mm
Packing: By Customer Request Standard: JIS G. EN. ASTM. DIN. GB Etc
Surface: Bright Supply Ability: >500 Tons Per Month
Highlight:

high temperature resistance wire

,

high tensile stainless steel wire

200 Series 300 series Stainless Steel EPQ Wire




Product Name 200 Series 300 series Stainless Steel EPQ Wire
SurfaceBright
StandardAISI DIN GB JIS
Treatmentcold-drawn, soft annealed
Diameter0.8-15mm



APPLICATIONS
Stainless steel wire is mainly used in below fields:
1) Electric power, petroleum, boiler, high or low temperature resistant, corrosion resistant.
2) Tableware, cabinet, cutting tool, boiler, auto part.
3) Medical instruments, building materials, food industry.
4) Sea, chemical industry and machine manufacture.Or they can be made upon negotiation.



Mechanical properties




DIAMETER(MM)

TENSILE STRENGTH(MPA)ELONGATION(%)


SOFT-ANNEALED


SEMI-HARD


HARD

FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30640~980__≥20
0.30~0.60590~930__≥20
0.60~1.00540~880830~11801180~1520≥25
1.00~3.00490~830780~11301130~1470≥25
3.00~6.00490~830730~10801080~1420≥30
6.00~14.00490~790730~1030_≥30



Physical Properties


Diameter Tolerance & Oval ToleranceMechanical Properties
(mm)Dia.(mm)Dia.ToleranceOval.Tolerance
0.030-0.050±0.003≤0.003
0.050-0.080±0.004≤0.004
0.080-0.10±0.005≤0.005
0.10-0.16±0.007≤0.007
0.16-0.28±0.010≤0.010
0.28-0.50±0.013≤0.013
0.50-0.90±0.015≤0.015
0.90-1.60±0.02≤0.02
1.60-2.80±0.03≤0.03
2.80-5.00±0.04≤0.04
5.00-9.00±0.05≤0.05
9.00-12.00±0.06≤0.06
12.00-14.00±0.07≤0.07

Type(mm)Dia(N/mm2)Tensilestrength(%)Elongation
SUS304.SUS304L0.02-0.05880-1130≥10
SUS316.SUS316L0.02-0.05650-900≥8
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321		0.05-0.16650-900≥20
0.16-0.50610-860
0.50-1.60570-820≥30
1.60-5.00520-770
5.00-14.00500-750
SUS304J30.05-0.16620-870≥20
0.16-0.50580-830
0.50-1.60540-790≥30
1.60-5.00500-750
5.00-14.00490-740




Chemical Composition


AISI GradeChemical Composition(%)
 CSiMnPSNiCrMo
304=<0.08=<1.00=<2.00=<0.045=<0.0308.00~10.5018.00~20.00-
304H>0.08=<1.00=<2.00=<0.045=<0.0308.00~10.5018.00~20.00-
304L=<0.030=<1.00=<2.00=<0.045=<0.0309.00~13.5018.00~20.00-
316=<0.045=<1.00=<2.00=<0.045=<0.03010.00~14.0010.00~18.002.00~3.00
316L=<0.030=<1.00=<2.00=<0.045=<0.03012.00~15.0016.00~18.002.00~3.00
430=<0.12=<0.75=<1.00=<0.040=<0.030=<0.6016.00~18.00-
430A=<0.06=<0.50=<0.50=<0.030=<0.50=<0.2514.00~17.00-

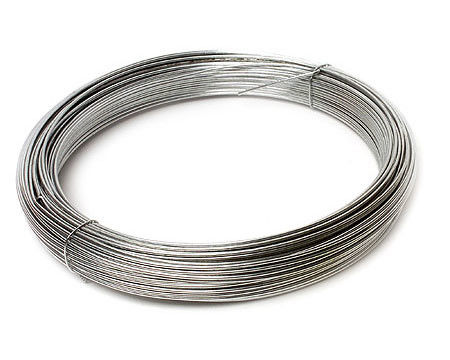

 300 Series EPQ Stainless Steel Bendable Wire For Chemical Industry 0
How to Enquiry Topone Stainless Steel EPQ Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:

1Your wire applicationRequired
2Wire GradeRequired
7Wire Shape and SizeRequired
3Wire Surface FinishRequired
4Wire Tensile Strength LevelRequired
5Quantity/WeightRequired
6Wire Manufacturing StandardsRequired
8Wire TolerencePrefered
9Delivery TimePrefered
10Wire PackageOptional

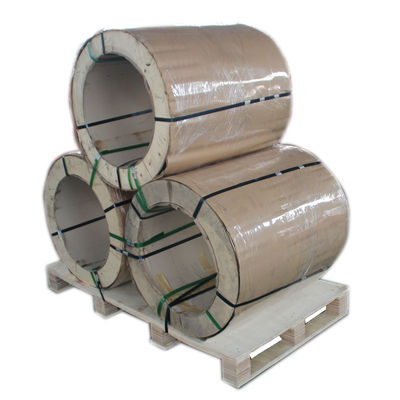

300 Series EPQ Stainless Steel Bendable Wire For Chemical Industry 1
