Name: High Flexibility Galvanized Iron Binding Wire Bright Surface Soap Coated Construction Binding
Brand: Ningbo Huayuan Metal Products Co.,Ltd
SKU: 0.15mm-12mm
Price: 2.10 USD
Availability: InStock

Home Products Steel Nail Wire

High Flexibility Galvanized Iron Binding Wire Bright Surface Soap Coated Construction Binding

Product Details:

Place of Origin:	China
Brand Name:	TOPONE
Certification:	ISO9001:2015
Model Number:	0.15mm-12mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000KG
Price:	Negotiation

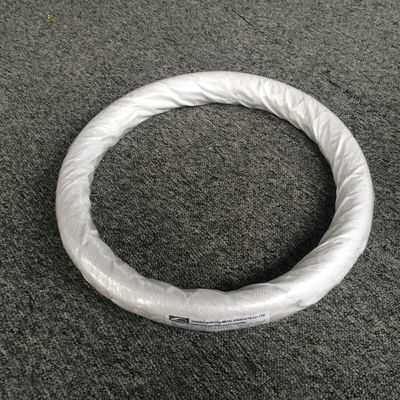

Packaging Details:	Coil/Pallet/Spool/By customere request
Delivery Time:	1-15 days
Payment Terms:	D/P, Western Union, L/C, T/T
Supply Ability:	>10000KGS per week

Contact Now

Detailed Product Description

Material:	316	Diameter:	0.15-12mm
Packing:	By Customer Request	Standard:	JIS G. EN. ASTM. DIN. GB Etc
Surface:	Bright	Supply Ability:	>500 Tons Per Month
Highlight:	0.15mm galvanized iron binding wire , flexible galvanized iron binding wire , soap coated construction binding wire

1.50mm 304 Stainless Steel Nail Wire

Product Description

We are a coveted business organization engaged in catering to the variegated requirements of the customers by bringing forth durable 1.50mm Stainless Steel Nail Wire. These wires are demanded extensively by our clients across the country owing to their tempting characteristics. Customized as per the variegated demands of customers, these wires are available at industry leading prices. We also fabricate and design our products using optimum-grade raw material earned certified source.

Features:

Super-fine stranded wire
Flame tested
Maximum flexibility

Specifications:

Size : 0.8mm to 6.0mm (0.031 to 0.236)
Grades : 304, 316, 304HC, 302HQ
Finish : Matt, Soap Coated
Temper : Soft, ¼ Hard
Packing : Coils 200-500 kgs, 2-3 Coils on carriers.

Mechanical properties

DIAMETER(MM)	TENSILE STRENGTH(MPA)			ELONGATION(%)
DIAMETER(MM)	SOFT-ANNEALED	SEMI-HARD	HARD	FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30	640~980	_	_	≥20
0.30~0.60	590~930	_	_	≥20
0.60~1.00	540~880	830~1180	1180~1520	≥25
1.00~3.00	490~830	780~1130	1130~1470	≥25
3.00~6.00	490~830	730~1080	1080~1420	≥30
6.00~14.00	490~790	730~1030	_	≥30

Physical Properties

Diameter Tolerance & Oval Tolerance

Mechanical Properties

(mm)Dia.	(mm)Dia.Tolerance	Oval.Tolerance
0.030-0.050	±0.003	≤0.003
0.050-0.080	±0.004	≤0.004
0.080-0.10	±0.005	≤0.005
0.10-0.16	±0.007	≤0.007
0.16-0.28	±0.010	≤0.010
0.28-0.50	±0.013	≤0.013
0.50-0.90	±0.015	≤0.015
0.90-1.60	±0.02	≤0.02
1.60-2.80	±0.03	≤0.03
2.80-5.00	±0.04	≤0.04
5.00-9.00	±0.05	≤0.05
9.00-12.00	±0.06	≤0.06
12.00-14.00	±0.07	≤0.07

Type	(mm)Dia	(N/mm2)Tensilestrength	(%)Elongation
SUS304.SUS304L	0.02-0.05	880-1130	≥10
SUS316.SUS316L	0.02-0.05	650-900	≥8
SUS304.SUS304L SUS309S SUS310S SUS316.SUS316L SUS321	0.05-0.16	650-900	≥20
	0.16-0.50	610-860	≥20
	0.50-1.60	570-820	≥30
	1.60-5.00	520-770
	5.00-14.00	500-750
SUS304J3	0.05-0.16	620-870	≥20
	0.16-0.50	580-830	≥20
	0.50-1.60	540-790	≥30
	1.60-5.00	500-750
	5.00-14.00	490-740

Chemical Composition

AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=<0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	9.00~13.50	18.00~20.00	-
316	=<0.045	=<1.00	=<2.00	=<0.045	=<0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=<0.12	=<0.75	=<1.00	=<0.040	=<0.030	=<0.60	16.00~18.00	-
430A	=<0.06	=<0.50	=<0.50	=<0.030	=<0.50	=<0.25	14.00~17.00	-

How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:

1	Your wire application	Required
2	Wire Grade	Required
7	Wire Shape and Size	Required
3	Wire Surface Finish	Required
4	Wire Tensile Strength Level	Required
5	Quantity/Weight	Required
6	Wire Manufacturing Standards	Required
8	Wire Tolerence	Prefered
9	Delivery Time	Prefered
10	Wire Package	Optional
