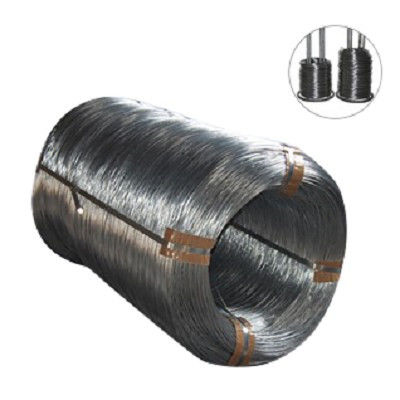

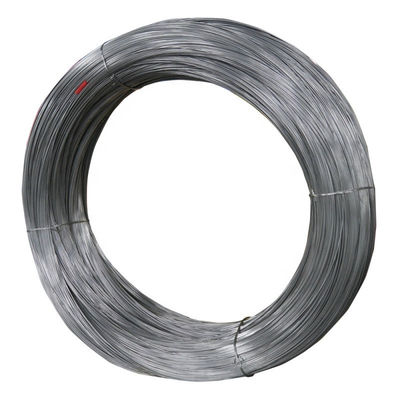

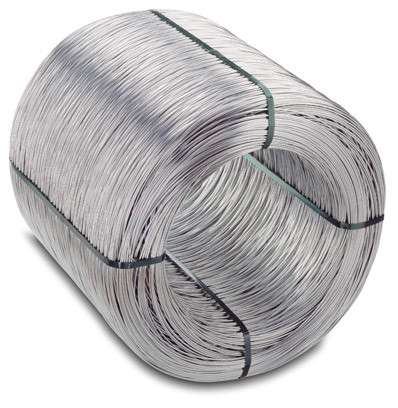

0.15-12mm 316L Stainless Steel Cold Heading Quality Steel Wire For Screw Thread

0.15-12mm 316L Stainless Steel Cold Heading Quality Steel Wire For Screw Thread

0.15-12mm 316L Stainless Steel Cold Heading Quality Steel Wire For Screw Thread
video
0.15-12mm 316L Stainless Steel Cold Heading Quality Steel Wire For Screw Thread
Product Details:
Place of Origin: China
Brand Name: TOPONE
Certification: ISO9001:2015
Model Number: SUS 302/304/316 etc
Payment & Shipping Terms:
Minimum Order Quantity: 1000KG
Price: Negotiation
Delivery Time: 1-15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: >10000KGS per week
Contact Now
Detailed Product Description
Material: SUS 201/202/304/316 Etc Surface: Bright
Coil Inner Diameter: 250-1000mm Standard: JIS G. EN. ASTM. DIN. GB Etc

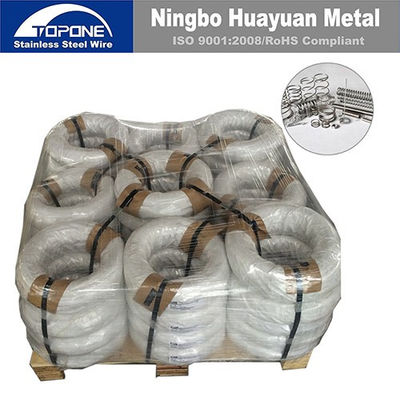

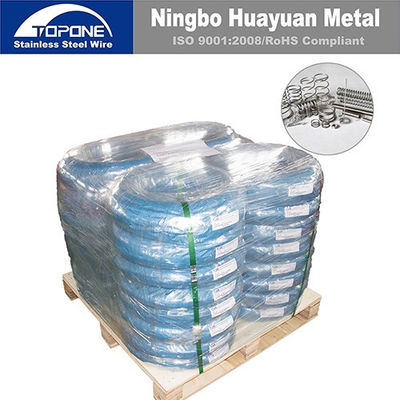

Packing: Coil Or Special Packing With Plate
Highlight:

0.15mm 316l stainless steel filler rod

,

12mm 316l stainless steel filler rod

,

0.5mm 316l tig rod

316L stainless steel cold heading wire for screw thread manufacturer price

316L Stainless Steel Cold Heading Quality Steel Wire For Screw Thread





With strict quality control and technology service activities, we are devoted to cold heading stainless wire development.





Features of cold heading stainless wire

  • Strict chemical property control in accordance with final application
  • Uniform quality management with continuous heat treatment process
  • Uniform wire diameter and surface quality maintenance with strict wire management
  • Uniform film (S-Co, E-Co, R-Co)



Features of cold heading stainless wire

Classification Grade Diameter
(mm)		 WSA WSB
Tensile strength
(N/㎟)		 Elongation percentage Min
Min(%)		 Area reduction rate Min
Min(%)		 Tensile strength
(N/㎟)		 Elongation percentage Min
Min(%)		 Area reduction rate Min
Min(%)
Austenite series AISI304(L)
AISI304J3		 Below 2.0 560 ~ 710 30 70 580 ~ 760 20 65
Over 2.0 510 ~ 660 40 530 ~ 710 20
XM7
304CU		 Below 2.0 480 ~ 630 30 500 ~ 680 20
Over 2.0 440 ~ 590 40 450 ~ 630 25
AISI316(L) Below 2.0 560 ~ 710 20 580 ~ 760 20
Over 2.0 510 ~ 660 30 530 ~ 710 25
Martensite series AISI410 Below 2.0 - - - 540 ~ 740 -
Over 2.0 - - 460 ~ 640 10
Ferritic series AISI43 Below 2.0 - - - 500 ~ 700
AISI434A Over 2.0 - - 450 ~ 600
  • Producible A type steel diameter is 0.8㎜ ~ 11.5㎜, B type steel diameter is 0.8㎜ ~ 34.0㎜
  • Standardized goods considering economic feasibility and cold heading can be ordered separately.
