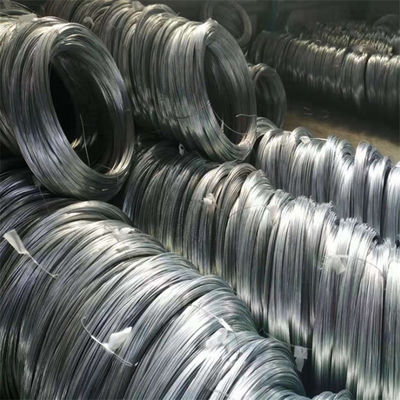

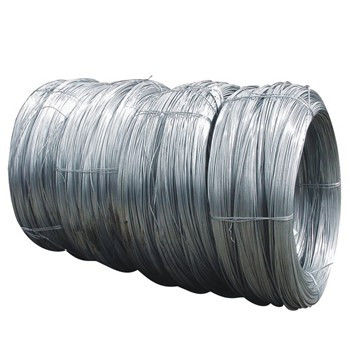

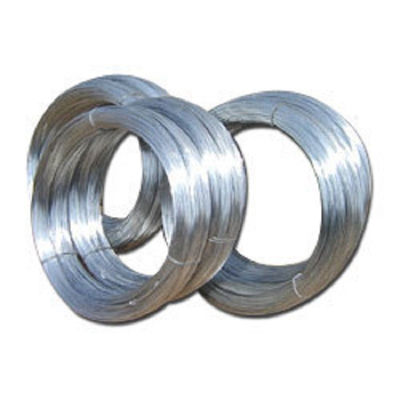

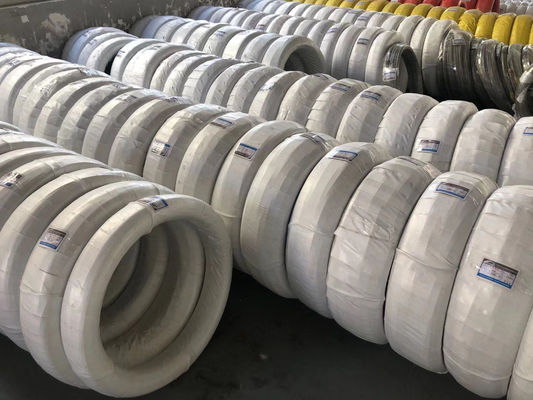

0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430

0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430

  • 0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430
  • 0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430
  • 0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430
  • 0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430
  • 0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430
0.5mm Stainless Steel Cold Heading Wire AISI 201 204 303 304 316 316l 410 430
Product Details:
Place of Origin: China
Brand Name: TOPONE
Certification: ISO9001:2015
Model Number: 304HC3
Payment & Shipping Terms:
Minimum Order Quantity: 1000KG
Price: Negotiation
Packaging Details: Coil/Pallet/Spool/By customere request
Delivery Time: 1-15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: >10000KGS per week
Contact Now
Detailed Product Description
Material: 304HC3 Surface: Bright Or Soap Cotaed
Coil Inner Diameter: 250-1000mm Standard: JIS G. EN. ASTM. DIN. GB Etc
Packing: Coil Or Special Packing With Plate
Highlight:

stainless steel cold heading wire 201

,

stainless steel cold heading wire 204

,

316 0.5 mm stainless steel wire

AISI 304HC3 Cu3% 316 Cu cold heading stainless steel wire for production of screws



Cold heading wire is processed to combine formability and ductility with enduring strength.

This makes it ideal for manufacturing fasteners and fixings such as bolts, screws, pins, rivets, studs and tie rods.





As a professional manufacturer, we can provide different size of Wire with good quality and reasonable price.



Specifications:

1) Grade: 304HC3

2) Standard: ASTM, EN,DIN,JIS
3) Diameter: 0.5mm-20mm

4) Surface: bright, cloudy,plain,black

5) Type: spring,welded,tig,mig etc

soft and hard

6) Packing: in coil or in spool then in carton or as your request



Terms:

1) Loading Port: Ningbo

2) Delivery term: FOB,CFR, CIF

3) Delivery lead time: 10 working days after received deposit.

4) Payment term:30% by T/T as deposit., balance will be paid by T/T ,

5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable



Product Application:

With bright surface, slight magnetism and no cracks on forming, is widely used in bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.



Features of cold heading stainless wire

Classification Grade Diameter
(mm)
WSA WSB
Tensile strength
(N/㎟)
Elongation percentage Min
Min(%)
Area reduction rate Min
Min(%)
Tensile strength
(N/㎟)
Elongation percentage Min
Min(%)
Area reduction rate Min
Min(%)
Austenite series AISI304(L)
AISI304J3
Below 2.0 560 ~ 710 30 70 580 ~ 760 20 65
Over 2.0 510 ~ 660 40 530 ~ 710 20
XM7
304CU
Below 2.0 480 ~ 630 30 500 ~ 680 20
Over 2.0 440 ~ 590 40 450 ~ 630 25
AISI316(L) Below 2.0 560 ~ 710 20 580 ~ 760 20
Over 2.0 510 ~ 660 30 530 ~ 710 25
Martensite series AISI410 Below 2.0 - - - 540 ~ 740 -
Over 2.0 - - 460 ~ 640 10
Ferritic series AISI43 Below 2.0 - - - 500 ~ 700
AISI434A Over 2.0 - - 450 ~ 600
