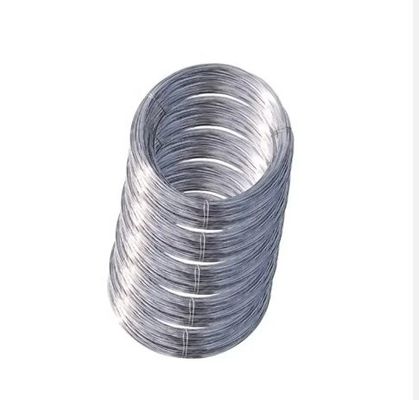

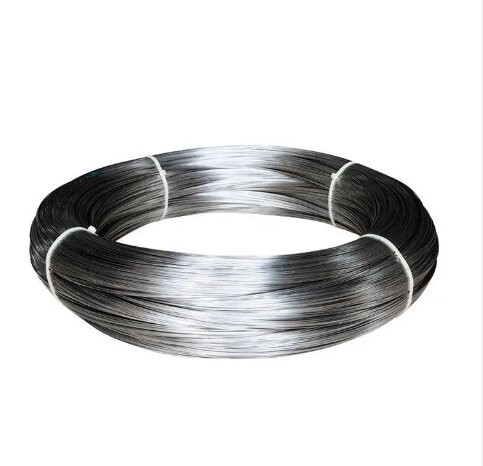

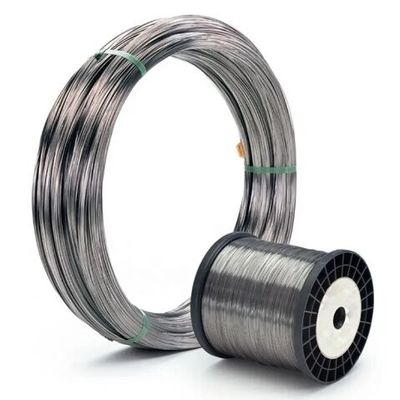

Stainless Steel Cold Heading Wire 302HQ 304HC 304Cu 316Cu For Nuts Bolts

Stainless Steel Cold Heading Wire 302HQ 304HC 304Cu 316Cu For Nuts Bolts

Stainless Steel Cold Heading Wire 302HQ 304HC 304Cu 316Cu For Nuts Bolts
video
Stainless Steel Cold Heading Wire 302HQ 304HC 304Cu 316Cu For Nuts Bolts
Product Details:
Place of Origin: china
Brand Name: toponewire
Certification: ISO9001:2015
Model Number: 0.3mm to 15mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: Negotiation
Packaging Details: Coil/Pallet/Spool/By customere request
Delivery Time: 7days
Payment Terms: T/T, Western Union, D/P
Supply Ability: >10000KGS per week
Contact Now
Detailed Product Description
Highlight:

Nuts Stainless Steel Cold Heading Wire

,

304HC Stainless Steel Cold Heading Wire

,

Bolts 316Cu Stainless Steel Wire





Material: 200(Cu),201(Cu),202,301,302,304(L),314,316(L).410,430,etc



Wire diameter: 0.3- 15.0mm.



Characteristics: Shiny surface condition excellent workability





Applications:



It generally used in braiding the hose for bathing product and machinery. With it good flexibility,resistant to high temperature and resistant to corrosion,it used widely in many industries.











Diameter Tolerance & Oval Tolerance Mechanical Properties
(mm)Dia. (mm)Dia.Tolerance Oval.Tolerance
0.030-0.050 ±0.003 ≤0.003
0.050-0.080 ±0.004 ≤0.004
0.080-0.10 ±0.005 ≤0.005
0.10-0.16 ±0.007 ≤0.007
0.16-0.28 ±0.010 ≤0.010
0.28-0.50 ±0.013 ≤0.013
0.50-0.90 ±0.015 ≤0.015
0.90-1.60 ±0.02 ≤0.02
1.60-2.80 ±0.03 ≤0.03
2.80-5.00 ±0.04 ≤0.04
5.00-9.00 ±0.05 ≤0.05
9.00-12.00 ±0.06 ≤0.06
12.00-14.00 ±0.07 ≤0.07
Type (mm)Dia (N/mm2)Tensilestrength (%)Elongation
SUS304.SUS304L 0.02-0.05 880-1130 ≥10
SUS316.SUS316L 0.02-0.05 650-900 ≥8
SUS304.SUS304L
SUS309S
SUS310S
SUS316.SUS316L
SUS321		 0.05-0.16 650-900 ≥20
0.16-0.50 610-860
0.50-1.60 570-820 ≥30
1.60-5.00 520-770
5.00-14.00 500-750
SUS304J3 0.05-0.16 620-870 ≥20
0.16-0.50 580-830
0.50-1.60 540-790 ≥30
1.60-5.00 500-750
5.00-14.00 490-740

Chemical Composition of Stainless Steel Wire

AISI Grade Chemical Composition(%)
  C Si Mn P S Ni Cr Mo
304 =<0.08 =<1.00 =<2.00 =<0.045 =<0.030 8.00~10.50 18.00~20.00 -
304H >0.08 =<1.00 =<2.00 =<0.045 =<0.030 8.00~10.50 18.00~20.00 -
304L =<0.030 =<1.00 =<2.00 =<0.045 =<0.030 9.00~13.50 18.00~20.00 -
316 =<0.045 =<1.00 =<2.00 =<0.045 =<0.030 10.00~14.00 10.00~18.00 2.00~3.00
316L =<0.030 =<1.00 =<2.00 =<0.045 =<0.030 12.00~15.00 16.00~18.00 2.00~3.00
430 =<0.12 =<0.75 =<1.00 =<0.040 =<0.030 =<0.60 16.00~18.00 -
430A =<0.06 =<0.50 =<0.50 =<0.030 =<0.50 =<0.25 14.00~17.00 -



As a leading manufacturer of stainless steel, we have been working with many big companies in Europe and Asian.We are in a good position not only to supply you high quality stainless steel wire, but also the excellent sales service. Well-trained engineers and sales will offer you any technical support. Thanks.
